First Look: 2025 Honda CMX1100 and CMX500 Rebel

Sometimes in the past it seemed that bikes would get updates for the sake of it. A perfectly good machine would get a new engine, revised chassis, flash swooping bodywork and expensive tech, yet end up not being much better than the old ‘un.

That doesn’t seem to happen so much now, thankfully. And Honda has resisted the temptation with its ‘Rebel’ range of gentle street cruisers, the CMX500 and CMX1100 Rebels.

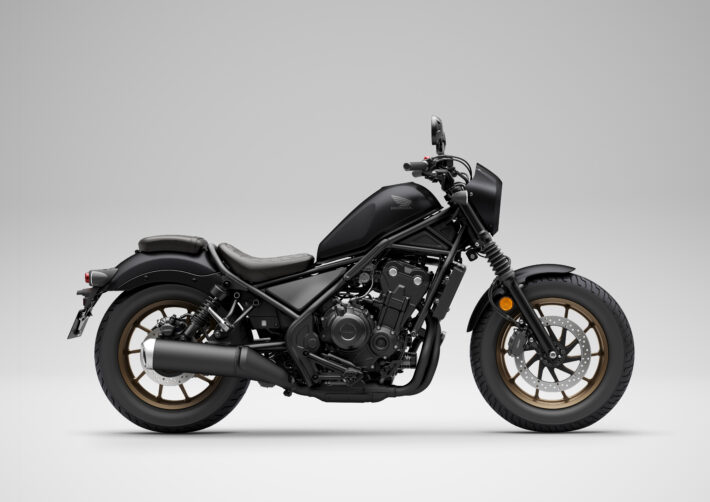

2025 Honda CMX500 Rebel

The 500 was first launched in 2017 and became a bit of a surprise hit, selling by the container-load all across Europe. Its combination of novice-friendly A2-compliant performance, smart looks, decent tech and solid value tapped into some hidden demand, and Honda made out like gangbusters.

Indeed, Kawasaki ended up building essentially the same bike with its 2024 Eliminator 500 to try and get in on the action…

2025 Honda CMX500 Rebel

Honda came out with an 1100 version in 2021 with the aim of extending that success into a big-bore machine, and it did well, albeit without the roaring success of the 500.

Arguably, in the 1000cc+ sector, people are willing to pay a bit extra for ‘the real thing’ in terms of cruisers, opting for a Harley-Davidson, Indian or maybe a Triumph Bobber or Rocket 3. But the Africa Twin-engined CMX1100 has opened up its own furrow with smooth, easy performance and optional high-tech kit like Honda’s unique DCT auto transmission.

2025 Honda CMX500 Rebel

Both 500 and 1100 have been big hits for Honda though, showing the original design got it just about right.

For 2025 then both 500 and 1100 Rebels are getting some updates – but nothing too involved. Starting with the smaller sibling, the 2025 CMX500 Rebel sees detail mods to the engine, mostly on the exhaust and inlet side, to add Euro 5+ homologation.

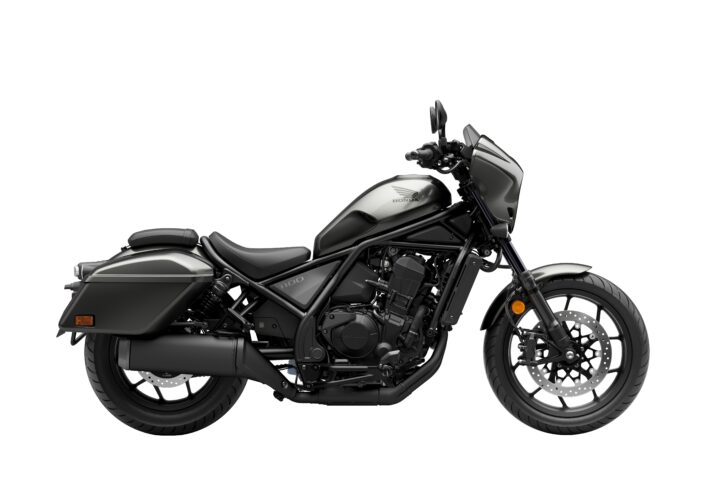

2025 Honda CMX1100 Rebel

The exhaust, with its 120mm diameter ‘shotgun’ style silencer, gets a new OBD2-2 gas sensor, which works with a revised ECU and new linear air flow intake sensor for even cleaner ‘mouse-fart’ style exhaust emissions.

The 471cc eight-valve DOHC parallel twin still makes the same power: 34kW or 46bhp@8,500rpm and 43.3Nm of torque at 6,000rpm, and lives in the same steel tube frame setup. The riding position has been tweaked with new footpeg and handlebar positions, and the seat has a new foam material for extra comfort on long runs.

2025 Honda CMX1100 Rebel

More interestingly, it now has a simpler pillion pad and footpeg fitment, easily swapped out for rider-only use. Finally, Honda has expanded the range of custom accessories, including front fork gaiters, tank pads, different seat fitments, passenger backrest, luggage, heated grips and more.

The CMX1100 Rebel gets a bigger overhaul, with three models now available in a new Rebel range: the CMX1100, the T touring version with small fairing and neat hard panniers fitted, and an SE special edition with extra kit already bolted on from the factory.

2025 Honda CMX1100 Rebel

The 1100 engine has been updated with some more mods from the latest Africa Twin models (which shares the basic motor layout): higher compression, altered valve timing, a heavier flywheel and retuned exhaust system. Honda says these tweaks give the 1,084cc SOHC 8-valve 270° parallel twin a boost in low- and mid-range torque with no loss of peak power.

The bore remains 92mm with 81.5mm stroke; compression ratio is now 10.5:1 (from 10.1:1) and the engine now produces 87bhp@7,250rpm, up about 1bhp, but Honda says there’s much more torque available. While the peak torque output stays the same – 98Nm@4,750rpm – response is much stronger, from the bottom of the rev range up, there’s 32% more than the Africa Twin engine.

2025 Honda CMX1100 Rebel

And Honda says its engineers have further tailored the engine characteristics to the CMX1100 Rebel through the use of a model-specific camshaft and flywheel, to help emphasise the natural pulses of the engine. The motor also gets the necessary ECU and sensor updates to comply with Euro 5+ homologation, and there’s now ride-by-wire throttle control.

That means improved rider aids: better traction control and four riding modes including one customisable User mode.

Honda’s also refined the DCT setup on the Rebel, with claimed smoother starting-off and low-speed control, ideal for U-turns and the like. It’s also better matched to the throttle control thanks to the ride-by-wire system.

2025 Honda CMX1100 Rebel

Away from the engine, Honda’s revised the riding position; the handlebars move 28mm rearward toward the rider, and up 12mm with the footpegs also moving 50mm forward. In conjunction the seat – constructed with a new high-grade urethane foam – is 10mm thicker and slightly wider without impacting ground reach (seat height is a very manageable 710mm, up from 700mm). All these changes apparently combine to make the riding position roomier and more relaxed.

Cruisers have seldom cared about their mass, and the Rebel is a chunky lad on the quiet. Kerb weight is set at 226kg with manual transmission, and 236kg for the DCT-equipped option, while the touring CMX1100T weighs in at 240kg as a manual and 250kg in DCT form, and the special edition CMX1100SE Rebel is 237kg.

2025 Honda CMX1100 Rebel

There are plenty of other upgrades, with a new 5” LCD full colour TFT dashboard albeit a square one rather than the round design some other custom designs insist upon. It’s an optically-bonded design to improve visibility in bright sunlight: sealing the gap between the cover glass and TFT screen with resin means glare is reduced, and backlight transmittance improved.

It’s customisable between Bar, Circle and Simple display patterns and offers the IOS/Android smartphone connectivity of Honda RoadSync. This feature – alongside a simplified, easy-to-use, backlit 4-way toggle-switch on the left handlebar – allows straightforward, on-screen turn-by-turn navigation as well as the option (via a Bluetooth helmet headset) to make calls or listen to music using Honda RoadSync with an app on your smartphone.

Relocated from under the seat, the USB-C charging port is now sited on the left side of the display for convenience and ease of connection.

As before, the Rebel rider can go solo or carry a passenger (the rear seat pad quickly and easily unbolts) and under the seat there’s a handy 3L storage compartment. The ignition key locates on the left side of the frame and opens the seat without having to be removed from the ignition. For long highway days, cruise control is also fitted as standard.

2025 Honda CMX1100 Rebel

Honda UK is only bringing in three versions, presumably based on what it knows will sell in old Blighty. British riders can choose from the CMX1100 manual transmission, the CMX1100 Tour with DCT or the CMX1100 Tour SE also with DCT. However, you can go crazy with official accessories: here’s a list of the optional packs available for the new CMX1100 from the dealer:

Style Pack designed to highlight the custom appearance of the Rebel, by adding:

Short Front Fender
Headlight Cowl (extended Windshield for CMX1100T variant)
Wheel Stripes
Side Tank Pads
Tank Pad Center

(Following items only included in Style Pack for CMX1100 variant)

Bar End Mirrors
Radiator Side Covers
Front Fork Boot

Comfort Pack (available in Black or Brown) a versatile collection of parts designed to enhance both rider and pillion’s comfort and convenience:

Rear Carrier
Passenger Backrest
Heated Grips

The Travel Pack (available in Black or Brown colours) is a collection of accessories which turn the Rebel into a long-distance tourer and travel companion:

Comfort Rider Seat
Comfort Pillion Seat
Right Saddle Bag & Support
Left Saddle Bag & Support

The following accessories are also available:

Solo Carrier
Screen Cowl
Rider Seat (diamond padding brown / black)
Brown Passenger Seat

We’ve no exact word as yet from Honda on the pricing or availability of the new Rebels – but the firm will announce this at the NEC Motorcycle Live show next month. More as we get it, in the meantime there will be more info at www.honda.co.uk

CMX500 Rebel Specifications

ENGINE

Type
Liquid-cooled 4-stroke, 4 valve DOHC parallel twin, 471cc

Bore x Stroke (mm)
67 mm x 66.8 mm

Compression Ratio
10.7:1

Max. Power Output
34 kW at 8,500 rpm

Max. Torque
43.3 Nm at 6,000 rpm

Max Speed
153km/h

Oil Capacity
3.2 L

FUEL SYSTEM

Carburation
PGM-FI

Fuel Tank Capacity
11.2 L

CO2 Emissions WMTC
84 g/km

Fuel Consumption
3.6 L/100km

ELECTRICAL SYSTEM

Battery Type
AGM

Battery Capacity
12 V 7.4 Ah

DRIVETRAIN

Clutch Type
Wet multiplate, assist and slipper clutch

Transmission Type
6-speed

Final Drive
Chain

FRAME

Type
Diamond steel

CHASSIS

Dimensions (L´W´H)
2,205 mm x 810 mm x 1,090 mm

Wheelbase
1,490 mm

Caster Angle
28°

Trail
110 mm

Seat Height
690 mm

Ground Clearance
125 mm

Kerb Weight*
191 kg (Special Edition – 192kg)

Turning radius
2.8 m

SUSPENSION

Suspension Front
41 mm telescopic forks: 121 mm travel

Suspension Rear
Showa twin shock: 95 mm travel

WHEELS

Wheels Front
16M/C x MT3.00

Wheels Rear
16M/C x MT3.50

Tyres Front
130/90-16M/C (67H)

Tyres Rear
150/80-16M/C (71H)

BRAKES

ABS Type
Two-channel

Brakes Front
Single 296 mm discs with Nissin axial-mount two piston calipers

Brakes Rear
Single 240 mm disc with single piston caliper

INSTRUMENTS & ELECTRICS

Instruments
LCD Meter with Speedometer, clock, gear position

Headlight
LED

Taillight
LED

Security System
HISS





CMX1100 Rebel specifications


CMX1100
CMX1100 DCT
CMX1100T
CMX1100T DCT
CMX1100SE DCT

ENGINE

Type
Liquid-cooled 4-Stroke 8-Valve Parallel Twin with 270° crank and Unicam, 1,084cc

Bore x Stroke (mm)
92 mm x 81.5 mm

Compression Ratio
10.5:1

Max. Power Output
65 kW at 7,250 rpm

Max. Torque
98 Nm at 4,750 rpm

Max Speed
160 km/h

FUEL SYSTEM

Carburation
PGM-FI Fuel Injection

Fuel Tank Capacity
13.6 L

CO2 Emissions WMTC
114 g/km
123 g/km
114 g/km
123 g/km
123 g/km

Fuel Consumption
4.9 L/100km
5.3 L/100km
4.9 L/100km
5.3 L/100km
5.3 L/100km

ELECTRICAL SYSTEM

Battery Type
AGM

Battery Capacity
12 V 11.2 Ah

DRIVETRAIN

Clutch Type
Wet Multiplate Clutch
2x Wet Multiplate Clutch
Wet Multiplate Clutch
2x Wet Multiplate Clutch
2x Wet Multiplate Clutch

Transmission Type
6-speed Manual
6-speed Dual Clutch
6-speed Manual
6-speed Dual Clutch
6-speed Dual Clutch

Drive
Chain

FRAME

Type
Steel diamond

CHASSIS

Dimensions (L´W´H) – mm
2,240 x 850 x 1,125
2,240 x 835 x 1,125
2,240 x 850  x 1,180
2,240 x 845 x 1,180
2,240 x 880 x 1,125

Wheelbase
1520 mm

Caster Angle
28°

Fork Angle
30°

Trail
110 mm

Seat Height
710 mm

Ground Clearance
120 mm

Kerb Weight
226 kg
236 kg
240 kg
250 kg
237 kg

Turning radius
2.9 m

SUSPENSION

Front
Preload adjustable 43mm cartridge style

Rear
Preload adjustable twin piggyback rear shock

WHEELS

Wheels Front
18M/C X MT3.50 Multi-spoke cast aluminium

Wheels Rear
16M/C X MT5.00 Multi-spoke cast aluminium

Tyres Front
130/70B18 M/C 63H

Tyres Rear
180/65B16 M/C 81H

BRAKES

ABS Type
Dual-channel ABS

Front
Radial mounted monoblock four-piston brake caliper, 330mm floating single disc

Rear
Single piston caliper, 256mm single disc

INSTRUMENTS & ELECTRICS

Instruments
Five-inch TFT Screen

Headlight
LED

Taillight
LED

Connectivity
Roadsync

USB
USB-C

Security System
HISS

Cruise Control
Yes

Riding mode
Standard, Sport, Rain, User 1 and User 2

HSTC
3 Level + OFF
